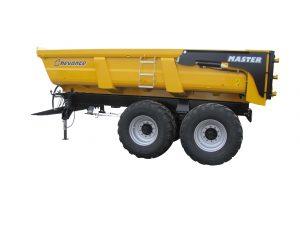

Reference  MASTER TP 180 “Standard”
Payload (Carrying capacity) 18 tons
Gross Vehicle Weight Rating (GVWR) 24 tons
Lenght of the inside body trailer 5,30 m/ 5,70 m
Width of the inside body trailer 2,16 m
Height of the body trailer 0,80 m ou 0,90 m
Body trailer volume (height 0,80 m) 9,5 m³
Body trailer volume (height 0,90 m) 10,7 m³
Thickness of the sides 6 mm
Thickness of the bottom 6 mm HARDOX
Outriggers of the body trailer Rectangular tubes 200x 100 x 6 mm- Steel H.L.E
Framework Rectangular tubes 300 x 100 x 8 mm-Steel H.L.E
Drawbar Spring 13 leaves- Steel DOMEX Extra H.L.E. 700 MC
Foot support Hydraulic
Cylinder dimensions 88 – 107 – 126 – 147 – 170 mm
Cylinder stroke 2 230 mm
Cylinder capacity 32 litres
Rolling types Boggie Colaert
2 axles Square 130 mm- 10 studs
Track 2 000 mm
Wheel base 1 500 mm
Brakes 406 x 120 mm
Composition of spring axle 10 leaves of 120 x 20 (4 Master Leaves)- Middle support with bolts
Wheels 18 R 22,5
Rear door Hydraulic dual acting monobloc
Light 2 road rear lights, 4 gauge lights and rotating light
Flexible protecting cover
Ladder
